Zoom H5studio Handy Recorder

Rs. 41,025.00 Rs. 33,847.00

Inclusive of all GST

( 0 Reviews )

Add to Cart Add to Wishlist

Sold by Tone Tech Digital Pvt Ltd DELIVERY 48 HOURS IN MAIN CITIES
See some FAQs here

Details

Your Best Work Starts Here

The H5studio was made for seamless and professional production. Creators can record flawless audio with stunningly clear microphones, studio-grade preamps, and 32-bit float recording.

Features

Large-diameter XY stereo microphone capsule (19.4 mm)
Dual AD converter + 32-bit float support for clip-free recording
16/24-bit depth available
4 track simultaneous recording at up to 192kHz sampling in WAV format
2 XLR/TRS phone inputs (48V, +4dBu input compatible)
F-series preamps
Color LCD screen
Compatible with Zoom capsule system 3.0
4-in/2-out USB audio interface
9 hours of battery life on AA battery (2x) or USB-C power

Description

Specs

INPUT AND OUTPUT CHANNELS

Inputs	Mic capsule	1
	MIC/LINE (mono)	2
Outputs	LINE OUT	1
	Headphone	1
	Built-in speaker (mono)	1

INPUTS

XY mic: XYH-5s	90º XY stereo format
	Pickup pattern	Unidirectional
	Sensitivity	–41 dB/Pa at 1 kHz
	Maximum sound pressure input	140 dB SPL
MIC/LINE IN: XYH-5s	Connector	1 stereo mini jack
	Input gain	−∞ – +60 dB
	Input impedance	2 kΩ or more
	Plug-in power	2.5 V
MIC/LINE (mono)	Connectors	2 XLR/TRS combo jacks
		(XLR：2 HOT TRS：TIP HOT）
	Input gain	−∞ – +60 dB
	Input impedance	MIC: 3 kΩ or more
		LINE: 3 kΩ or more
	Maximum input level	MIC: +4 dBu
		LINE: +24 dBu
	Phantom power	+48 V
	Equivalent input noise	–127 dBu or less (IHF-A) at 150Ω input

OUTPUTS

LINE OUT	Connector	1 stereo mini jack
	Maximum output level	+1 dBu
	Output impedance	110 Ω or less
Headphone	Connector	1 stereo mini jack
	Maximum output level	20 ｍW + 20 ｍW（when 32 Ω load）
	Output impedance	10 Ω or less
Built-in speaker	Type	20 mm x 30 mm elliptical dynamic speaker
	Effective maximum output	250 mW

RECORDER

Maximum simultaneous recording tracks	6
Maximum simultaneous playback tracks	4
Recording formats	WAV
	44.1/48/96/192 kHz,
	16-bit/24-bit/32-bit float
	mono/stereo
	BWF and iXML formats supported
Recording media	microSDHC memory cards
	microSDXC memory cards

^{CLICK HERE}^{for information about microSD cards that have been conﬁrmed to work with this unit.}

DISPLAY

2.00" full-color LCD	320 x 240

USB

Connector		USB Type-C
		• Use a USB cable that supports data transfer.
Audio Interface		USB 2.0 High Speed
	Input and output channels	4 in / 2 out (Multi)
		2 in / 2 out (Stereo)
	Sampling frequencies	44.1/48/96 kHz (audio interface only)
		44.1/48 kHz (audio interface + onboard recording)
	Bit depths	24-bit, 32-bit float
File transfer		USB 2.0 High Speed

REMOTE

Dedicated wireless adapter	ZOOM BTA-1

POWER

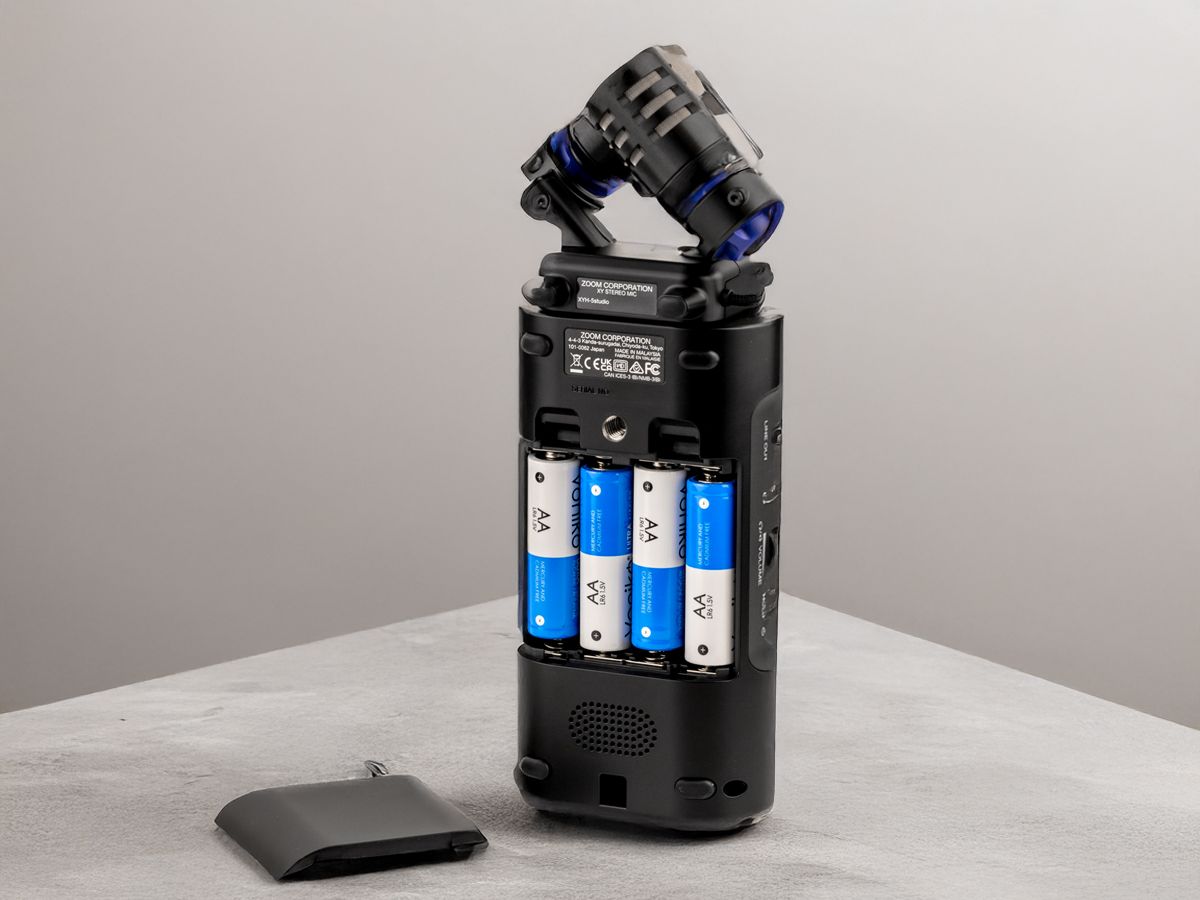

4 AA batteries	Alkaline, lithium or rechargeable NiMH batteries
AC Adapter	ZOOM AD-17 (DC 5 V/1 A)
	• USB bus power is supported.

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track (XYH-5s) recording

Alkaline batteries	About 15 hours
NiMH batteries (1900 mAh)	About 13 hours
Lithium batteries	About 21 hours

48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
_{• These values are approximate.

• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.}

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 4-track (XYH-5s and inputs 1–2) recording

Alkaline batteries	About 6 hours
NiMH batteries (1900 mAh)	About 6 hours
Lithium batteries	About 11.5 hours

48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
_{• These values are approximate.

• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.}
